SDR-960-24
Specifications
| Technical data | Information | ||
|---|---|---|---|
|
Brand
|
Mean Well
|
Commodity
|
8504408390
|
|
Item number
|
SDR-960-24
|
Warranty pack
|
36 Months Bring-In
|
|
Series
|
SDR-960
|
RoHS
|
Compliant
|
|
Description
|

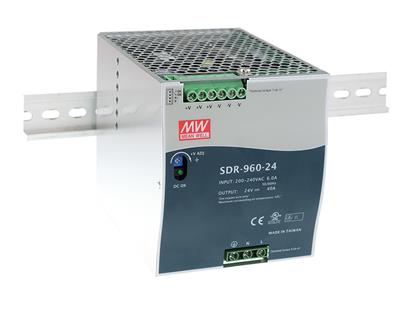

AC-DC Industrial DIN rail power supply; Output 24Vdc at 40A; Metal casing; Ultra slim width 110mm; Parallel function
|
Packing quantity
|
6
|
|
Application
|
Installation UL 508
ITE EN/UL/IEC 60950
|
Net weight (gram)
|
2540
|
|
Technology
|
AC/DC
|
||
|
Power Format
|
DIN rail
|
||
|
Output Power (W)
|
960
|
||
|
Output Voltage (V)
|
24
|
||
|
Output Current (A)
|
40
|
||
|
Input Voltage (V)
|
180 - 264
|
||
|
IP Rating
|
No IP assigned
|
||
|
Width (mm)
|
110
|
||
|
Height (mm)
|
125.2
|
||
|
Depth (mm)
|
150
|
||
|
Control Signals
|
DC OK
|
||
|
Dimming Technology
|
No Dimming
|
||
Specifications
| Technical data | Information | ||
|---|---|---|---|
|
Brand
|
Mean Well
|
Commodity
|
8504408390
|
|
Item number
|
SDR-960-24
|
Warranty pack
|
36 Months Bring-In
|
|
Series
|
SDR-960
|
RoHS
|
Compliant
|
|
Description
|
AC-DC Industrial DIN rail power supply; Output 24Vdc at 40A; Metal casing; Ultra slim width 110mm; Parallel function
|
Packing quantity
|
6
|
|
Application
|
Installation UL 508
ITE EN/UL/IEC 60950
|
Net weight (gram)
|
2540
|
|
Technology
|
AC/DC
|
||
|
Power Format
|
DIN rail
|
||
|
Output Power (W)
|
960
|
||
|
Output Voltage (V)
|
24
|
||
|
Output Current (A)
|
40
|
||
|
Input Voltage (V)
|
180 - 264
|
||
|
IP Rating
|
No IP assigned
|
||
|
Width (mm)
|
110
|
||
|
Height (mm)
|
125.2
|
||
|
Depth (mm)
|
150
|
||
|
Control Signals
|
DC OK
|
||
|
Dimming Technology
|
No Dimming
|
||
$233.54
Original: $667.25
-65%SDR-960-24—
$667.25
$233.54Description
