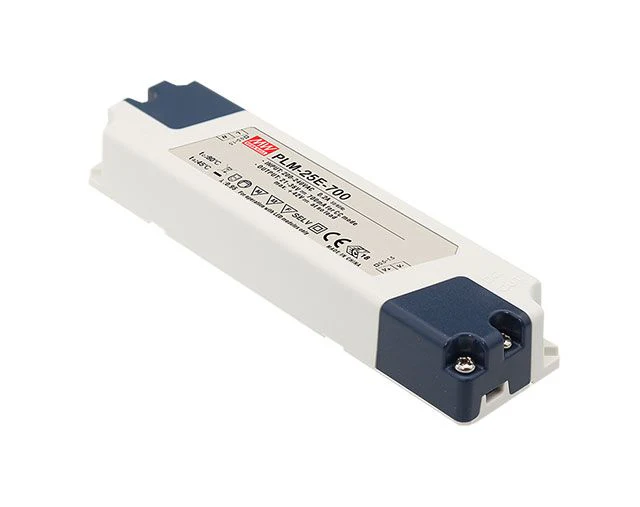

PLM-25E-S - Mean Well PLM-25E Series LED Power Supply 25W 350-1050mA
Universal input/ Full range (180~295VAC)Built-in active PFC functionProtections: Short circuitOther features:No load power consumption <0.5WCooling by free air convectionFully isolated plastic caseSmall and compact sizeClass II power unit, no FG100% full load burn-in testHigh reliability, low costSuitable for LED lighting and moving sign applications2 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 25 Output Current Choose Option Dimmable (Type) No Dimensions 145x 38x 22 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load);EN61000-3-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level, criteria B (surge 2KV) Input Voltage 180-295VAC Safety Standards ENEC EN61347-1, EN61347-2-13, EN62384, IP30 approved Output Voltage Options Single Working Temperature -30°C-+45°C PDF Datasheet PLM-25E-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 25 Output Current Choose Option Dimmable (Type) No Dimensions 145x 38x 22 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load);EN61000-3-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level, criteria B (surge 2KV) Input Voltage 180-295VAC Safety Standards ENEC EN61347-1, EN61347-2-13, EN62384, IP30 approved Output Voltage Options Single Working Temperature -30°C-+45°C PDF Datasheet PLM-25E-spec.pdf
Universal input/ Full range (180~295VAC)Built-in active PFC functionProtections: Short circuitOther features:No load power consumption <0.5WCooling by free air convectionFully isolated plastic caseSmall and compact sizeClass II power unit, no FG100% full load burn-in testHigh reliability, low costSuitable for LED lighting and moving sign applications2 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 25 Output Current Choose Option Dimmable (Type) No Dimensions 145x 38x 22 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load);EN61000-3-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level, criteria B (surge 2KV) Input Voltage 180-295VAC Safety Standards ENEC EN61347-1, EN61347-2-13, EN62384, IP30 approved Output Voltage Options Single Working Temperature -30°C-+45°C PDF Datasheet PLM-25E-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 25 Output Current Choose Option Dimmable (Type) No Dimensions 145x 38x 22 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load);EN61000-3-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level, criteria B (surge 2KV) Input Voltage 180-295VAC Safety Standards ENEC EN61347-1, EN61347-2-13, EN62384, IP30 approved Output Voltage Options Single Working Temperature -30°C-+45°C PDF Datasheet PLM-25E-spec.pdf
$26.40
PLM-25E-S - Mean Well PLM-25E Series LED Power Supply 25W 350-1050mA—
$26.40
Description
Universal input/ Full range (180~295VAC)Built-in active PFC functionProtections: Short circuitOther features:No load power consumption <0.5WCooling by free air convectionFully isolated plastic caseSmall and compact sizeClass II power unit, no FG100% full load burn-in testHigh reliability, low costSuitable for LED lighting and moving sign applications2 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 25 Output Current Choose Option Dimmable (Type) No Dimensions 145x 38x 22 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load);EN61000-3-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level, criteria B (surge 2KV) Input Voltage 180-295VAC Safety Standards ENEC EN61347-1, EN61347-2-13, EN62384, IP30 approved Output Voltage Options Single Working Temperature -30°C-+45°C PDF Datasheet PLM-25E-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 25 Output Current Choose Option Dimmable (Type) No Dimensions 145x 38x 22 EMC Standards Compliance to EN55015, EN61000-3-2 Class C (>60% load);EN61000-3-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level, criteria B (surge 2KV) Input Voltage 180-295VAC Safety Standards ENEC EN61347-1, EN61347-2-13, EN62384, IP30 approved Output Voltage Options Single Working Temperature -30°C-+45°C PDF Datasheet PLM-25E-spec.pdf
