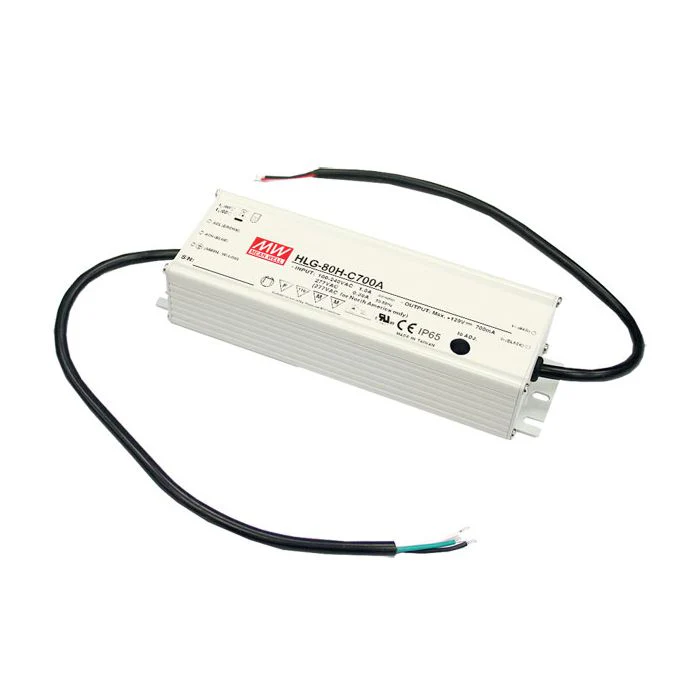

HLG-80H-CS - Mean Well HLG-80H-C Series LED Driver 90W 350mA – 700mA
Three in one dimming function (1~10Vdc or 10V PWM signal or resistance)Constant current designProtections: Short circuit / Over voltage / Over temperatureUniversal AC input / Full range (up to 305VAC)Built-in active PFC functionCooling by free air convectionOutput current adjustable through output cableIP67 design for indoor or outdoor installationsSuitable for dry / damp / wet locationsHigh efficiency up to 91.5%5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 90 Output Current Choose Option Dimmable (Type) 1-10VDC, PWM signal, resistance Output Voltage Range (V) 84~129 Dimensions 195.6x 61.5x 38.8 EMC Standards Compliance to EN55015, EN61000-3-2 Class C ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, heavy industry level (surge L,N-FG: 4KV), criteria A Input Voltage 90~305VAC, 127VDC~431VDC Safety Standards UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent, IP67 approved Output Voltage Options Single Working Temperature -40~+50°C (refer to output derating curve) PDF Datasheet HLG-80H-C-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 90 Output Current Choose Option Dimmable (Type) 1-10VDC, PWM signal, resistance Output Voltage Range (V) 84~129 Dimensions 195.6x 61.5x 38.8 EMC Standards Compliance to EN55015, EN61000-3-2 Class C ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, heavy industry level (surge L,N-FG: 4KV), criteria A Input Voltage 90~305VAC, 127VDC~431VDC Safety Standards UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent, IP67 approved Output Voltage Options Single Working Temperature -40~+50°C (refer to output derating curve) PDF Datasheet HLG-80H-C-spec.pdf
Three in one dimming function (1~10Vdc or 10V PWM signal or resistance)Constant current designProtections: Short circuit / Over voltage / Over temperatureUniversal AC input / Full range (up to 305VAC)Built-in active PFC functionCooling by free air convectionOutput current adjustable through output cableIP67 design for indoor or outdoor installationsSuitable for dry / damp / wet locationsHigh efficiency up to 91.5%5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 90 Output Current Choose Option Dimmable (Type) 1-10VDC, PWM signal, resistance Output Voltage Range (V) 84~129 Dimensions 195.6x 61.5x 38.8 EMC Standards Compliance to EN55015, EN61000-3-2 Class C ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, heavy industry level (surge L,N-FG: 4KV), criteria A Input Voltage 90~305VAC, 127VDC~431VDC Safety Standards UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent, IP67 approved Output Voltage Options Single Working Temperature -40~+50°C (refer to output derating curve) PDF Datasheet HLG-80H-C-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 90 Output Current Choose Option Dimmable (Type) 1-10VDC, PWM signal, resistance Output Voltage Range (V) 84~129 Dimensions 195.6x 61.5x 38.8 EMC Standards Compliance to EN55015, EN61000-3-2 Class C ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, heavy industry level (surge L,N-FG: 4KV), criteria A Input Voltage 90~305VAC, 127VDC~431VDC Safety Standards UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent, IP67 approved Output Voltage Options Single Working Temperature -40~+50°C (refer to output derating curve) PDF Datasheet HLG-80H-C-spec.pdf
$31.17
Original: $89.06
-65%HLG-80H-CS - Mean Well HLG-80H-C Series LED Driver 90W 350mA – 700mA—
$89.06
$31.17Description
Three in one dimming function (1~10Vdc or 10V PWM signal or resistance)Constant current designProtections: Short circuit / Over voltage / Over temperatureUniversal AC input / Full range (up to 305VAC)Built-in active PFC functionCooling by free air convectionOutput current adjustable through output cableIP67 design for indoor or outdoor installationsSuitable for dry / damp / wet locationsHigh efficiency up to 91.5%5 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 90 Output Current Choose Option Dimmable (Type) 1-10VDC, PWM signal, resistance Output Voltage Range (V) 84~129 Dimensions 195.6x 61.5x 38.8 EMC Standards Compliance to EN55015, EN61000-3-2 Class C ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, heavy industry level (surge L,N-FG: 4KV), criteria A Input Voltage 90~305VAC, 127VDC~431VDC Safety Standards UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent, IP67 approved Output Voltage Options Single Working Temperature -40~+50°C (refer to output derating curve) PDF Datasheet HLG-80H-C-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 90 Output Current Choose Option Dimmable (Type) 1-10VDC, PWM signal, resistance Output Voltage Range (V) 84~129 Dimensions 195.6x 61.5x 38.8 EMC Standards Compliance to EN55015, EN61000-3-2 Class C ; EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547, heavy industry level (surge L,N-FG: 4KV), criteria A Input Voltage 90~305VAC, 127VDC~431VDC Safety Standards UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent, IP67 approved Output Voltage Options Single Working Temperature -40~+50°C (refer to output derating curve) PDF Datasheet HLG-80H-C-spec.pdf
