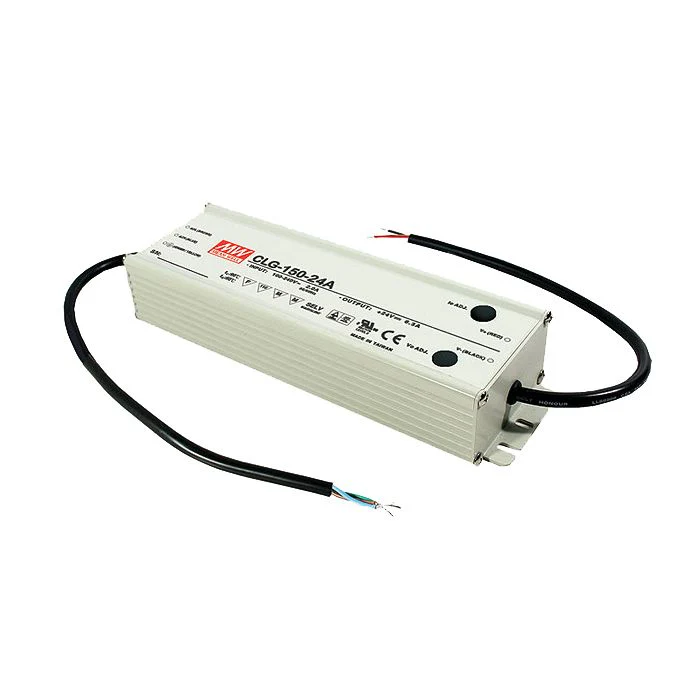

CLG-150-24B - Mean Well LED Driver CLG-150-24B 150W 24V
Built-in active PFC function, PF>0.9 for 75% of load or higherBuilt-in constant current limiting circuit (C.V + C.C mode)Protections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input (up to 295 VAC) / Full rangeIP67 ratedC.C. level can be adjusted through output cableCooling by free air convectionSuitable for LED lighting, street lighting and moving sign applicationsMeet 4KV surge immunity level (IEC 61000-4-5)3 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 150 Output Voltage 24V DC Output Adjustment Constant current level adjustable through output cable Dimensions 222 x 68 x 39 EMC Standards EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 90~295VAC, 127~417VDC Safety Standards UL60950-1 , UL1012, UL8750, TUV EN60950-1, EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C (refer to output derating curve) PDF Datasheet CLG-150-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 150 Output Voltage 24V DC Output Adjustment Constant current level adjustable through output cable Dimensions 222 x 68 x 39 EMC Standards EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 90~295VAC, 127~417VDC Safety Standards UL60950-1 , UL1012, UL8750, TUV EN60950-1, EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C (refer to output derating curve) PDF Datasheet CLG-150-spec.pdf
Built-in active PFC function, PF>0.9 for 75% of load or higherBuilt-in constant current limiting circuit (C.V + C.C mode)Protections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input (up to 295 VAC) / Full rangeIP67 ratedC.C. level can be adjusted through output cableCooling by free air convectionSuitable for LED lighting, street lighting and moving sign applicationsMeet 4KV surge immunity level (IEC 61000-4-5)3 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 150 Output Voltage 24V DC Output Adjustment Constant current level adjustable through output cable Dimensions 222 x 68 x 39 EMC Standards EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 90~295VAC, 127~417VDC Safety Standards UL60950-1 , UL1012, UL8750, TUV EN60950-1, EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C (refer to output derating curve) PDF Datasheet CLG-150-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 150 Output Voltage 24V DC Output Adjustment Constant current level adjustable through output cable Dimensions 222 x 68 x 39 EMC Standards EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 90~295VAC, 127~417VDC Safety Standards UL60950-1 , UL1012, UL8750, TUV EN60950-1, EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C (refer to output derating curve) PDF Datasheet CLG-150-spec.pdf
$118.73
CLG-150-24B - Mean Well LED Driver CLG-150-24B 150W 24V—
$118.73
Description
Built-in active PFC function, PF>0.9 for 75% of load or higherBuilt-in constant current limiting circuit (C.V + C.C mode)Protections: Short circuit / Over current / Over voltage / Over temperatureOther features:Universal AC input (up to 295 VAC) / Full rangeIP67 ratedC.C. level can be adjusted through output cableCooling by free air convectionSuitable for LED lighting, street lighting and moving sign applicationsMeet 4KV surge immunity level (IEC 61000-4-5)3 years warranty
More Information Manufacturer Mean Well Output Wattage (W) 150 Output Voltage 24V DC Output Adjustment Constant current level adjustable through output cable Dimensions 222 x 68 x 39 EMC Standards EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 90~295VAC, 127~417VDC Safety Standards UL60950-1 , UL1012, UL8750, TUV EN60950-1, EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C (refer to output derating curve) PDF Datasheet CLG-150-spec.pdf
More Information Manufacturer Mean Well Output Wattage (W) 150 Output Voltage 24V DC Output Adjustment Constant current level adjustable through output cable Dimensions 222 x 68 x 39 EMC Standards EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 Input Voltage 90~295VAC, 127~417VDC Safety Standards UL60950-1 , UL1012, UL8750, TUV EN60950-1, EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 Output Voltage Options Single Working Temperature -30~+70°C (refer to output derating curve) PDF Datasheet CLG-150-spec.pdf
